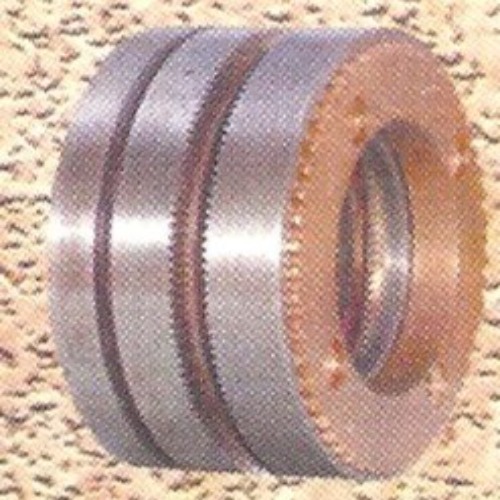

Send InquiryMagnacore Make Slipring Type Tooth Clutch Gear Type
Price 9600.0 INR/ Number
MOQ : 1 Number
Magnacore Make Slipring Type Tooth Clutch Gear Type Specification
- Surface Finish
- Precision Machined, Anti-corrosive Coating
- Torque
- Up to 2500 Nm
- Weight
- Varies as per size; typically 3 kg to 18 kg
- Mounting Type
- Flange/Hub Mounting
- Outer Diameter
- Available from 75 mm to 300 mm
- Thickness
- Ranges from 35 mm to 85 mm
- Inner Diameter
- Available from 20 mm to 120 mm
- Part Type
- Electromechanical Clutch
- Compatible with
- Suitable for various machinery and drive systems
- Product Type
- Slipring Type Tooth Clutch
- Type
- Gear Type
- Usage
- Industrial Power Transmission
- Application
- Machinery, Automation Systems, Conveyors
- Size
- Custom as per requirement
- Material
- Alloy Steel, Special Hardened Steel
- Ambient Operating Temperature
- -10C to +55C
- Teeth Profile
- High Precision Involute Teeth for Positive Drive
- Control Method
- Electromagnetic Slipring Activation
- Disengagement Time
- 20-45 ms
- Insulation Class
- F Class
- Color
- Industrial Silver/Grey with Red Details
- Manufacturing Standard
- ISO 9001:2015 Certified
- Engagement Time
- 30-60 ms
- Operating Voltage
- 24V, 48V, 110V, or 230V (as per application)
- Package Includes
- Clutch Assembly, Fitting Kit, Operation Manual
- Lubrication
- Factory Sealed, Maintenance-Free
- Protection
- IP54 (standard), higher on request
- Max Speed
- Up to 2800 RPM
- Customization
- Available for special applications
Magnacore Make Slipring Type Tooth Clutch Gear Type Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 3 Week
About Magnacore Make Slipring Type Tooth Clutch Gear Type
Slipring Type Toothed Clutches Gera Type can transmit higher torque compare to other Multi Disc Clutches of the same size. Toothed Electro magnetic Clutches provide Positive Connection between two shafts by remote electric control. toothed clutches can only be engaged either at rest or at a small speed difference between the two parts. Toothed Clutches can only be operated when the two shafts or pieces of machinery to be coupled ate stationery, running at the same speed or at very slightly different speed, but it may be disengaged at any speed under load. When compared with other types. Toothed Clutches transmit more torque with less physical dimensions. Toothed Clutches can be operated in wet or Dry Condition. Toothed Clutches need not require any adjustment during life time.
