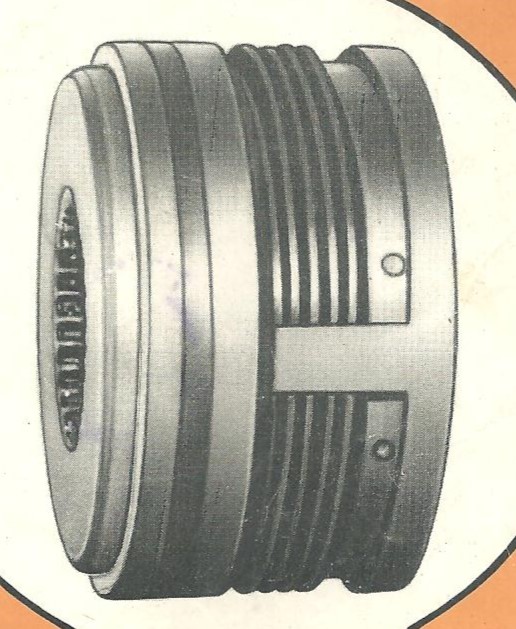

Send InquiryMagnacore Make Air Gap Multipal Clutches with slipring type 0-006-00 Type
Price 24000.0 INR/ Number
MOQ : 1 Number
Magnacore Make Air Gap Multipal Clutches with slipring type 0-006-00 Type Specification
- Torque
- 90 Nm (Nominal)
- Mounting Type
- Shaft Mounted with Keyway
- Thickness
- 68 mm (Approx.)
- Part Type
- Air Gap Multipal Clutch
- Inner Diameter
- 60 mm (Approx.)
- Outer Diameter
- 218 mm (Approx.)
- Weight
- 10.5 kg (Approx.)
- Surface Finish
- Precision Machined and Coated
- Compatible with
- Custom Industrial Equipment
- Product Type
- Multiple Disc Clutch
- Type
- Slipring Type
- Usage
- Industrial Mechanical Power Transmission
- Application
- Machinery, Press Machines, Automation Systems
- Size
- 0-006-00
- OE Number
- 0-006-00
- Material
- High Grade Steel
- Insulation Class
- Class F
- Cooling method
- Natural Air Cooled
- Operating Temperature Range
- -10C to +80C
- Protection Level
- IP 44
- Number of Discs
- Multiple (as per design)
- Connection Type
- Slipring with Carbon Brush
- Power Consumption
- 32 W
- Response Time
- < 50 ms
- Coil Voltage
- 24V DC
- Static Friction Torque
- 95 Nm
- Duty Cycle
- Continuous / Intermittent
- Backlash
- Virtually Zero
- Maximum Speed
- 1800 RPM
Magnacore Make Air Gap Multipal Clutches with slipring type 0-006-00 Type Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 3 Week
About Magnacore Make Air Gap Multipal Clutches with slipring type 0-006-00 Type
These models can be applicable in wet operation or Dry Operation with alternative friction linings. The design is such that through the actuating pressure produced by the magnetic coil is indirectly transmitted to the plates by number of pins sliding through the coil. To achieve maximum torque and accurate operation. It is recommended to maintain Air Gap Between the magnetic Body and the Armature Plate. In these type of clutches Air Gap can be maintain periodically because the Armature is fitted at the back side of magnetic Body.They can be supplied with flange housing , Hub Housing, Cup Housing.
