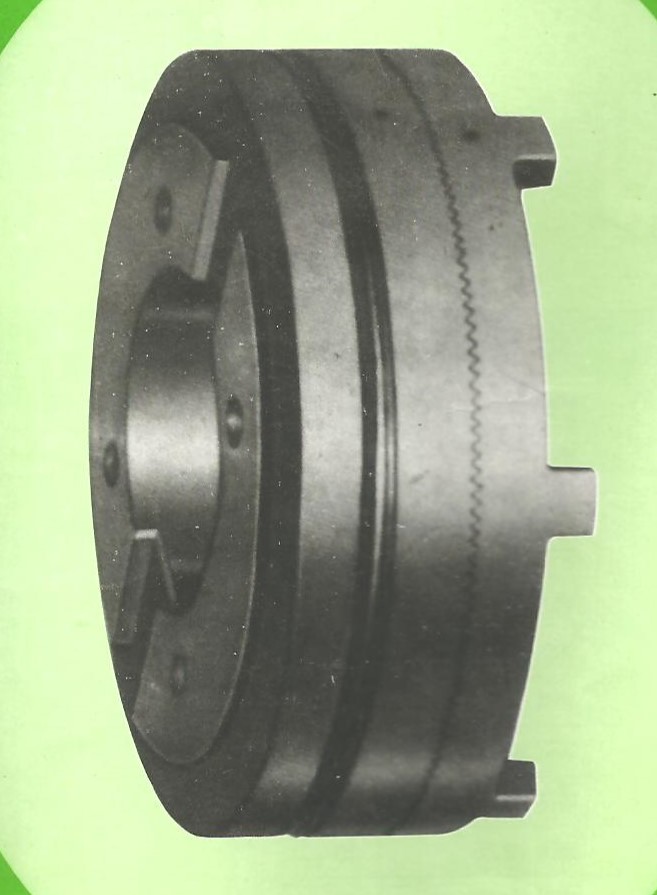

Send InquiryMagnacore Make Slipring type tooth clutch Cup type
Price 9600.0 INR/ Number
MOQ : 1 Number
Magnacore Make Slipring type tooth clutch Cup type Specification
- Mounting Type
- Cup Mounted, Flange Fitting
- Torque
- 50 Nm to 1500 Nm (Model Dependent)
- Compatible with
- Magnacore Clutch Systems and Equivalent Mechanisms
- Surface Finish
- Precision Ground, Anti-corrosive Coating
- Weight
- 2.2 kg (Approx.), Varies with Model
- Part Type
- Tooth Clutch Assembly
- Inner Diameter
- 50 mm (Customizable)
- Thickness
- 32 mm (Standard), Custom on Request
- Outer Diameter
- 110 mm (Customizable)
- Product Type
- Slipring Type Tooth Clutch (Cup Type)
- Type
- Electromechanical Clutch
- Usage
- Power Transmission, Rotary Motion Control
- Application
- Automotive, Industrial Machinery, Automation Equipment
- Size
- Standard, Customizable
- OE Number
- As per customer specification
- Material
- Alloy Steel, Heat-treated
- Lubrication
- Grease Packed, Maintenance Free
- Maximum Speed
- 3000 RPM
- Number of Teeth
- 36 (Standard), Custom Available
- Operating Voltage
- 24V DC (for Slipring Operation)
- Insulation Class
- Class F
- Noise Level
- <60 dB
- Clutch Life Expectancy
- Over 1 Million Cycles
- Customization
- Available for Bore, Teeth, Mounting, and Torque
- Ambient Temperature Range
- -20C to 60C
- Engagement Type
- Manual/Electromagnetic Slipring Activation
